    Home / Energy storage / Batterlution Ground Eco HV - BMS unit

    Batterlution Ground Eco HV - BMS unit

    Code: 3-BAT-GROUNDHV-PDU
    Ground eco BCU
    €872,12 / pcs €720,76 excl. VAT
    Skladem (138 pcs)

    BMS (BCU) unit - serves to monitor and control the Ground Eco HV battery cells. It communicates directly with photovoltaic converters. Ground Eco HV batteries are mainly intended for residential PV installations and are compatible with many high-voltage single-phase or three-phase hybrid PV inverters.

    Detailed information

    Shipping price calculation
    Door to door delivery
    Upon your request, we will immediately calculate the price of delivering the goods to your door based on the delivery address.
    Local pickup
    Personal pick-up avaliable
    Pick up the goods directly from us in our showroom in Brno,CZ. Forklift loading is avaliable.
    We ship throughout Europe
    We ship throughout Europe
    We deliver to all European countries. We ship small size packages up to container quantities through shipping companies.

    Related products

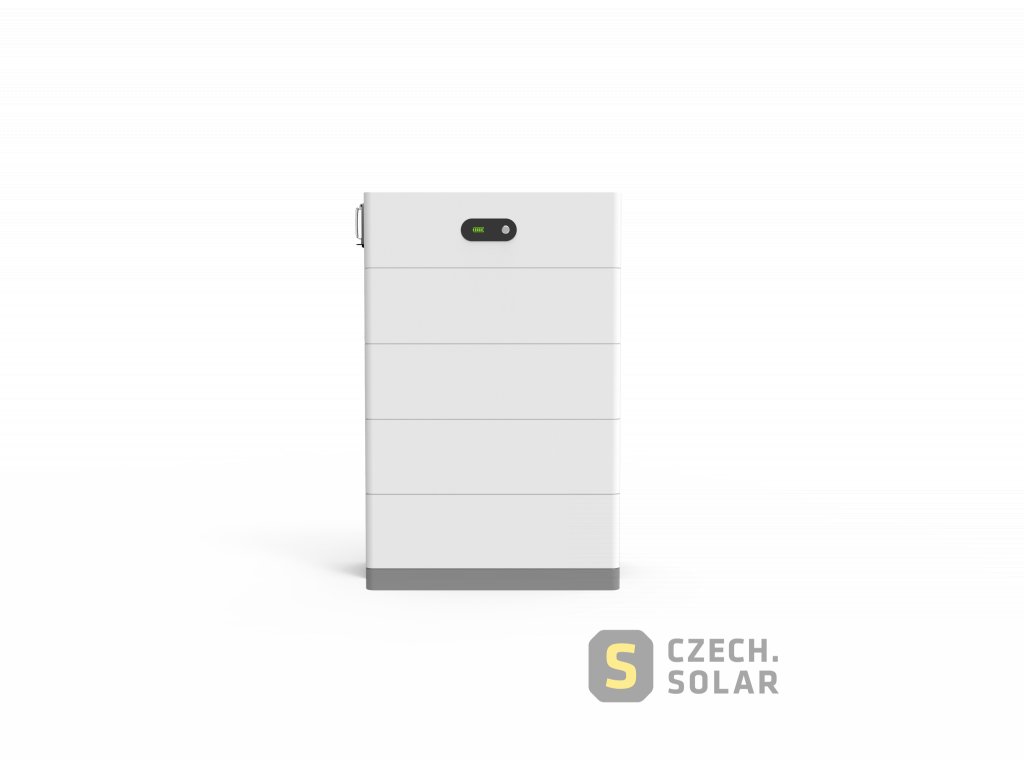

    Ground eco 10kw set
    Batterlution Ground Eco HV 2,5 kW - high voltage battery unit
    Skladem (533 pcs)
    €788,98 excl. VAT
    €954,67

    One battery unit 2,5 kW. Scalable (up to 20 kW) high-voltage battery system for hybrid photovoltaic inverters with an operating voltage range of 200V-450V. Ground Eco HV...

    3-BAT-GROUNDHV-2500
    goodew 6,5kt 10kt
    Tip Výprodej
    €1 721,97 –34 %
    Hybrid inverter GoodWe GW-6,5-ET Plus 6.500 W
    Skladem (3 pcs)
    €936,15 excl. VAT
    €1 132,74

    GoodWe GW6.5K-ET Plus three-phase hybrid voltage inverter with two MPPTs, Wi-Fi monitoring system. Compatible with high voltage batteries.

    2-GW-GW6-5K-ET-PLUS
    Leapton 400w full black main
    Tip
    Leapton LP182*182-M-54-MH - 400 W Full Black
    Skladem (10 pcs)
    €68,56 excl. VAT
    €82,96

    Leapton solar module with an output of 400 W and efficiency of 20.46%. Full Black design. With its compact dimensions (up to 2 m2), it is suitable for installation in family...

    1-LEA-LP182-182-M-54-MH-400W-FB
    CS HiKu CS3L 380W
    Canadian Solar HiKu CS3L-380MS
    Vyprodáno
    €76,60 excl. VAT
    €92,68

    The Canadian solar module with an output of 380 W with an efficiency of 20.5%. Design with a black frame Black Frame. With its compact dimensions (up to 2 m2), it is suitable...

    1-CANS-HIKU-CS3L-380MS-BF
    Show all related products

    Product detailed description

    - - - - - - - - - - - - - - - - - - - - - - - - - - -
    Battery module to BMS unit HERE>
    - - - - - - - - - - - - - - - - - - - - - - - - - - -

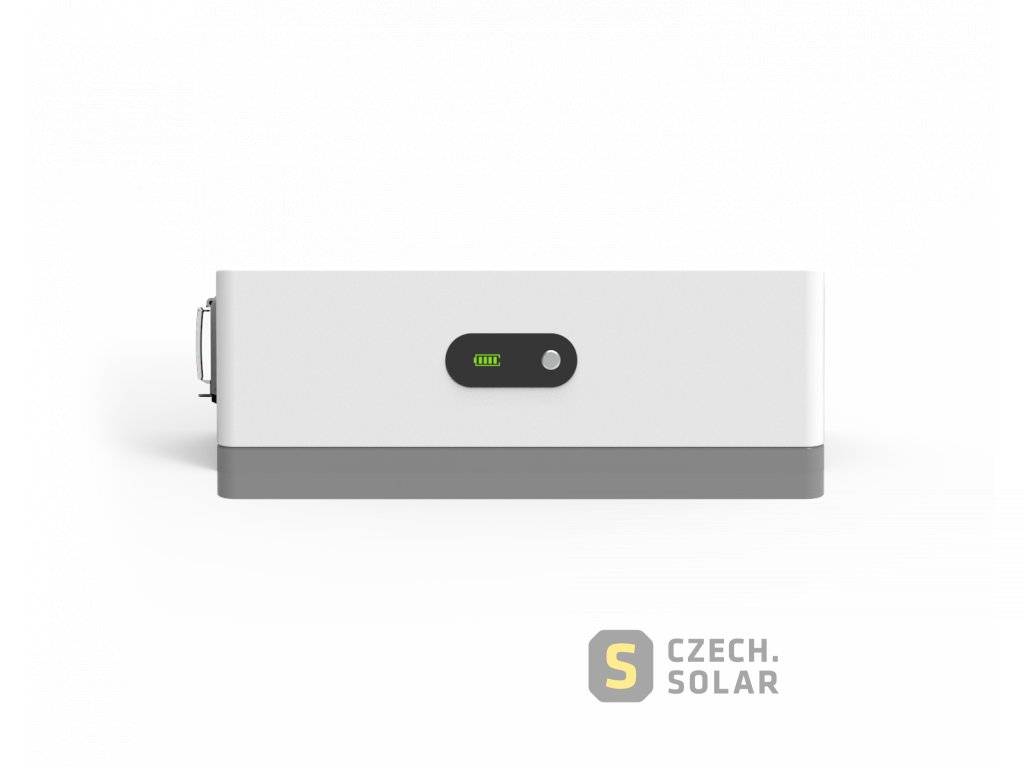

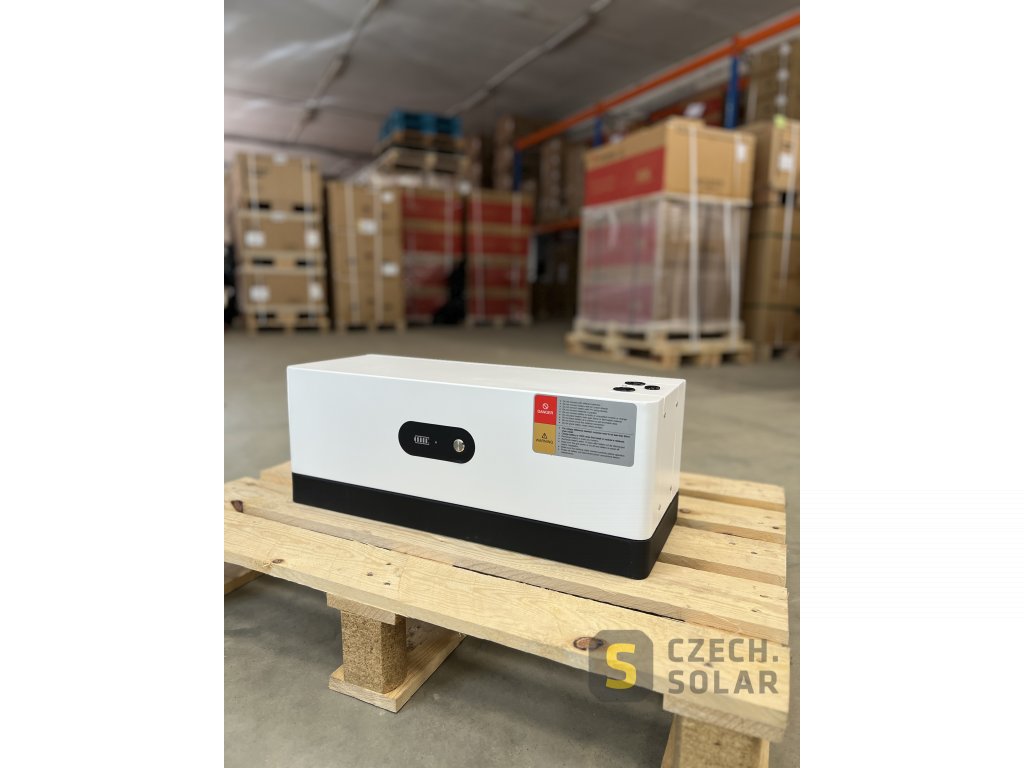

    BMS (BCU) unit
    It serves to monitor and control the battery cells. It communicates directly with photovoltaic converters.

    • SOC, ALM a RUN
    • CAN / Modbus communication
    • Maximální current 50A
    • WIFI & APP


    BMS communication protocols and inverter brands:
    Pylon_H1_Extended, Pylon_H1_Standart, Pylon_H2_Extended, Pylon_H2_Standart, GoodWe_Standart,
    Sofar_Extended, Luxpower_Extended, REVO_HY_Extend, REVO_Extend, Afore_HY_Extend,
    Hypon_Extend_Growatt_Extend, Sungrow_Standard, ThinkP_Standard

    GoodWe GW 5 ~ 30K - ET GoodWe_Standard
    Growatt SPH 4 ~ 10K TL3 BH-UP Growatt_Extend
    Sofar HYD 5 ~ 20KTL -3PH Sofar_Extend
    Sungrow SH5.0 ~ 10RT Pylon_H1_Exetend
    Solinteg MHT -4 ~ 12K-25 Pylon_H1_Exetend
    Solinteg MHT -10 ~ 20K-40 Pylon_H1_Exetend
    Megarewo R6 ~ 15KH3  REVO_HY_Extend
    Afore AF 3 ~ 30K-TH Afore_HY_Extend

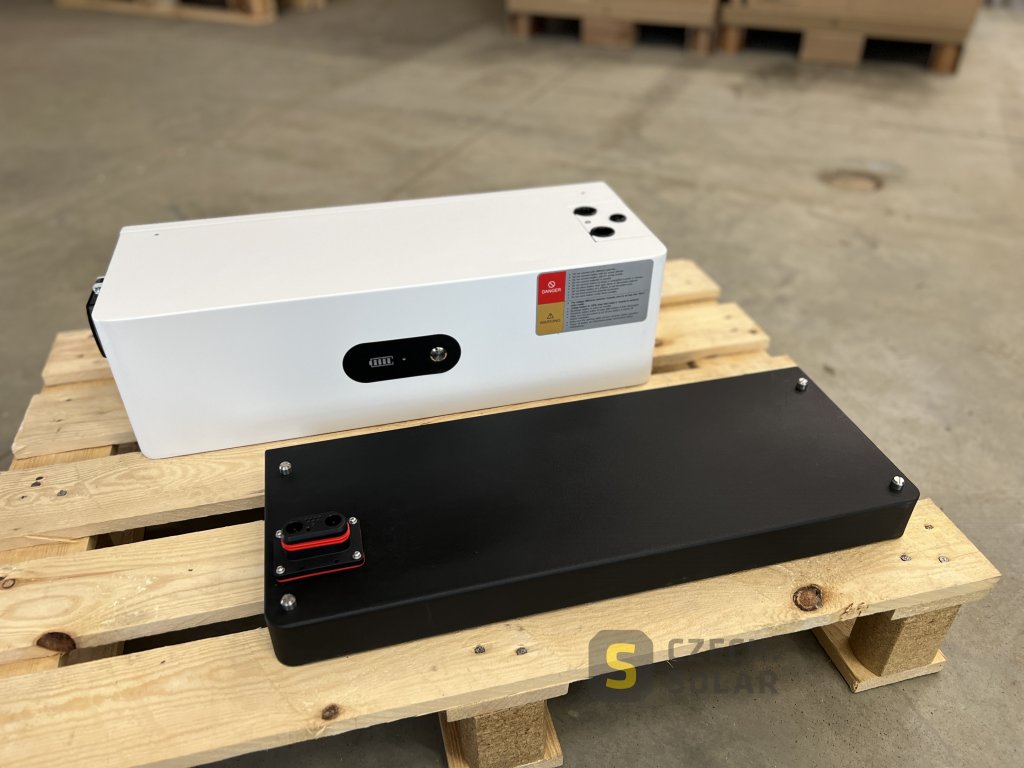

    Package includes:

    • 1x BMS unit
    • 1x Connections cabels
    • 1x Base

    Batterlution Ground Eco HV 2.5 kWh batteries offer many uses such as storing unused solar energy for later use,
    peakshaving, backup power function if the photovoltaic inverter supports these functions.
    Batteries are easily scalable in parallel.

      Reccomended number of modules Ground Eco HV 2,5 kW Capacity
    		Voltage range
      4 9.98 kW 180 ~ 233 V
      5 12.48 kW 224 ~ 292 V
      6 14.97 kW 268 ~ 350 V
      7 17.47 kW 313 ~ 409 V
      8 19.96 kW 358 ~ 467 V







    Additional parameters

    Category: Energy storage systems
    Warranty: 10 let
    Weight: 19 kg
    Typ: Ground Eco HV
    Kapacita: 2.5 kW
    Kapacita Ah: 52
    Jmenovité napetí: 48 V
    Maximální proud: 50 A
    Špičkový nabíjecí/vybíjecí proud: 50 A
    Doporučené SOC: 10 % ~ 100 %
    Složení baterií: Prismatic LiFePO4
    Zapojení článků: Sériové zapojení pro docílení vysokého napětí
    Konektor: Bezkonektrovové click&play řešení
    Hmotnost: 28 kg/modul
    Bezpečnost: Vestavěný samohasící modul
    Minimální životnost: 10 let nebo 6000 cyklů
    Životní cyklus (0,5 - 25 °C): 5000 cyklů
    Nabíjecí provozní teplota: 0℃ ~ 45℃
    Vybíjecí provozní teplota: -10℃ ~ 45℃
    Rozměry: 820 x 145 x 580 mm
    Komunikace: CAN
    Kompatibilní měniče: Growatt, Sofarsolar, Sunways, Sungrow, GoodWe, Luxpower, Afore, INVT, Hypontech, atd

    Batterlution is a high-tech company that specializes in the development and production of energy storage batteries.
    Established in 2017, the headquarters and R&D center is located in Hefei, Anhui Province.

    While several branches are operated in Jiangxi Province. Batterlution has entered the industry
    with a chain of integrity and maturity that sets it apart from other startups.
