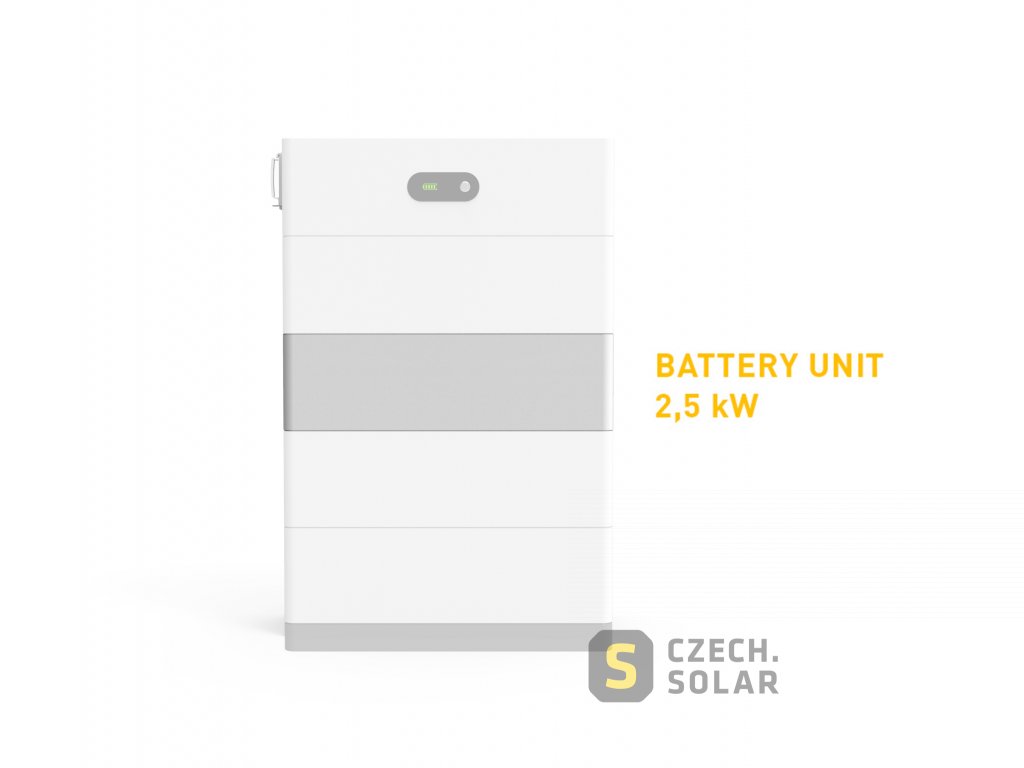

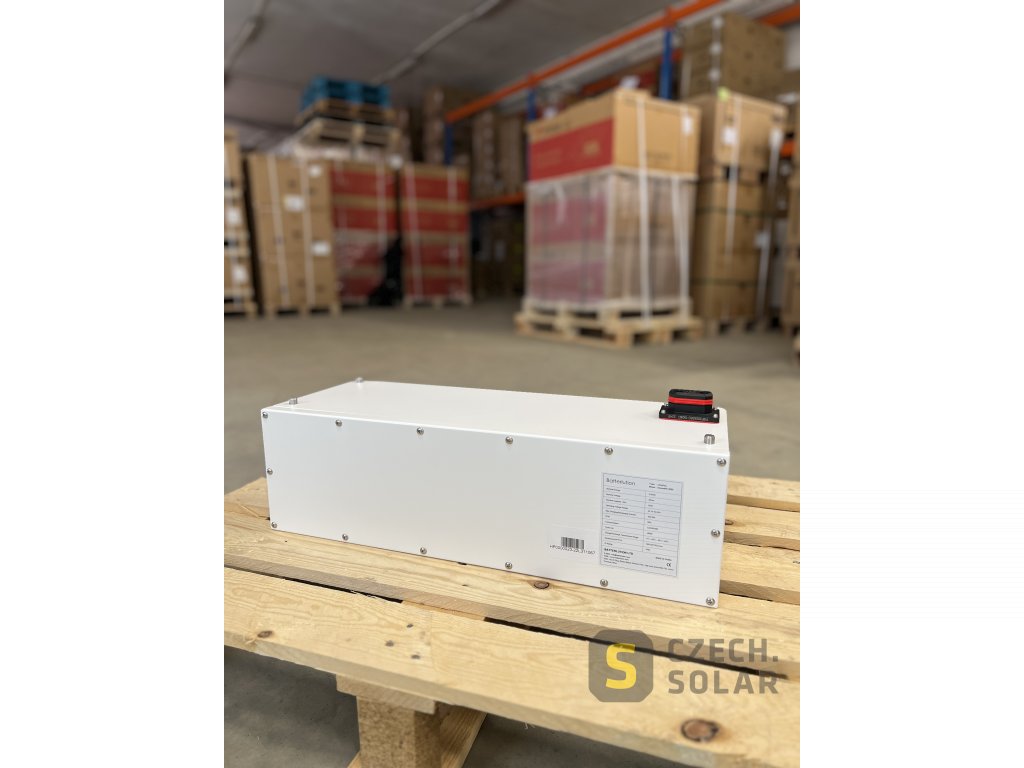

Batterlution Ground Eco HV 2,5 kW - high voltage battery unit

Product detailed description

- - - - - - - - - - - - - - - - - - - - - - - - - - -
BMS unit for batteries HERE>
- - - - - - - - - - - - - - - - - - - - - - - - - - -

Batterlution Ground Eco HV 2.5 kW batteries offer many uses such as storing unused solar energy for later use,

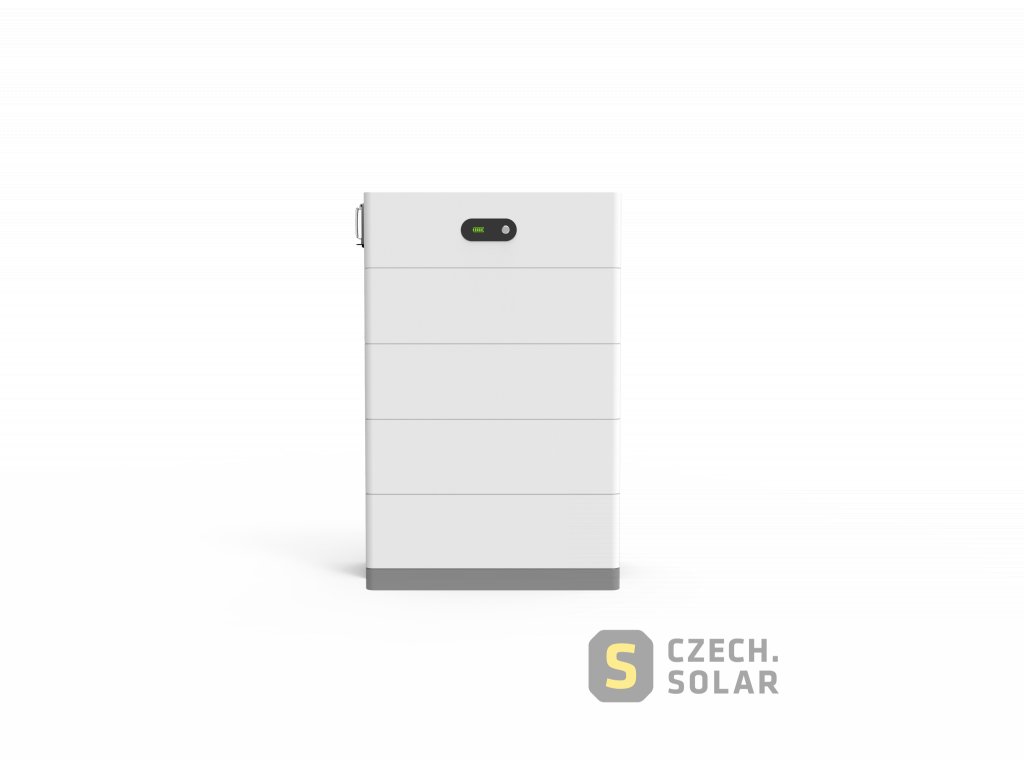

peakshaving, backup power function if the photovoltaic inverter supports these functions. Batteries are easily scalable in parallel.

GOTION HIGH-TECH battery cell

The used battery cells come from the well-known manufacturer Gotion. 102 Ah | 3.2V | LiFePo4 Lithium-ion.
Model IFP27175200A-105Ah. Lifetime of more than 4000 cycles in normal use and more than 6000 cycles
in optimized working conditions.

Basic parameters and advantages of the Ground Eco HV battery:

• 48 V
• 52 Ah
• 2.5 kWh module
• Paralell series connection
• Compact design
• Easy CLIC installation
• Active balancing between modules
• Built-in self-extinguishing module
• Assembly by one technician

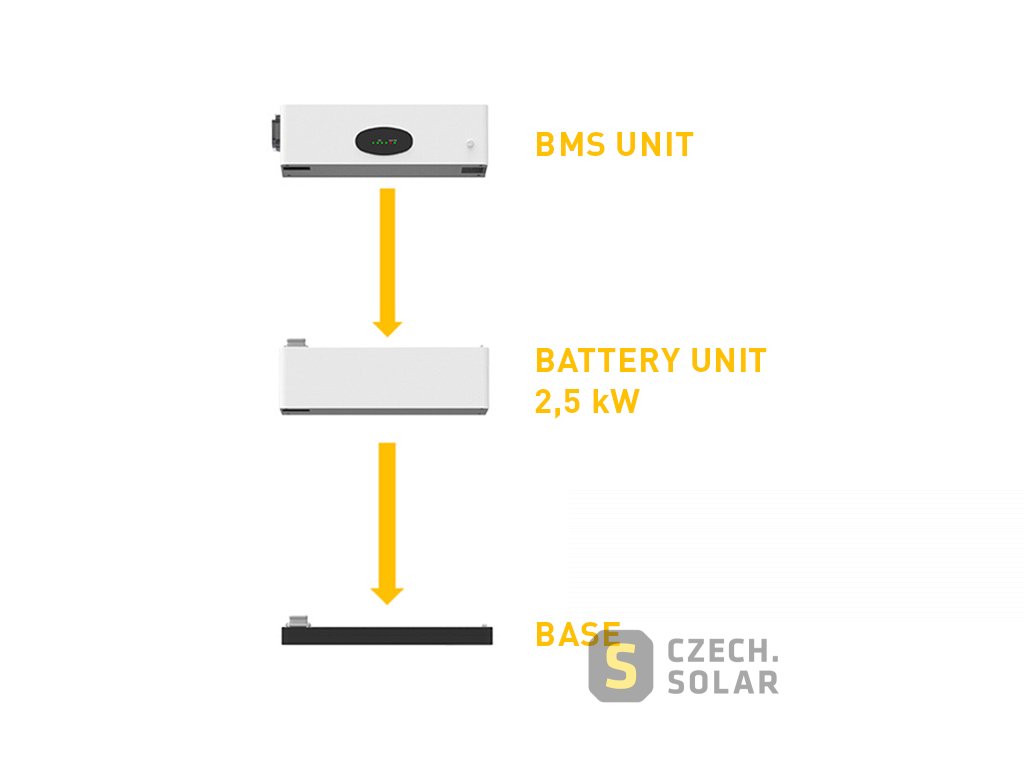

BMS unit (you can buy separately)
It serves to monitor and control the battery cells. It communicates directly with photovoltaic converters.

• SOC, ALM a RUN ukazatelé
• CAN / Modbus communication
• Max current 50 A
• WIFI & APP

BMS communication protocols and inverter brands:
Pylon_H1_Extended, Pylon_H1_Standart, Pylon_H2_Extended, Pylon_H2_Standart, GoodWe_Standart,
Sofar_Extended, Luxpower_Extended, REVO_HY_Extend, REVO_Extend, Afore_HY_Extend,
Hypon_Extend_Growatt_Extend, Sungrow_Standard, ThinkP_Standard

Package includes:

• 1x Battery Ground Eco HV 2,5 kW
